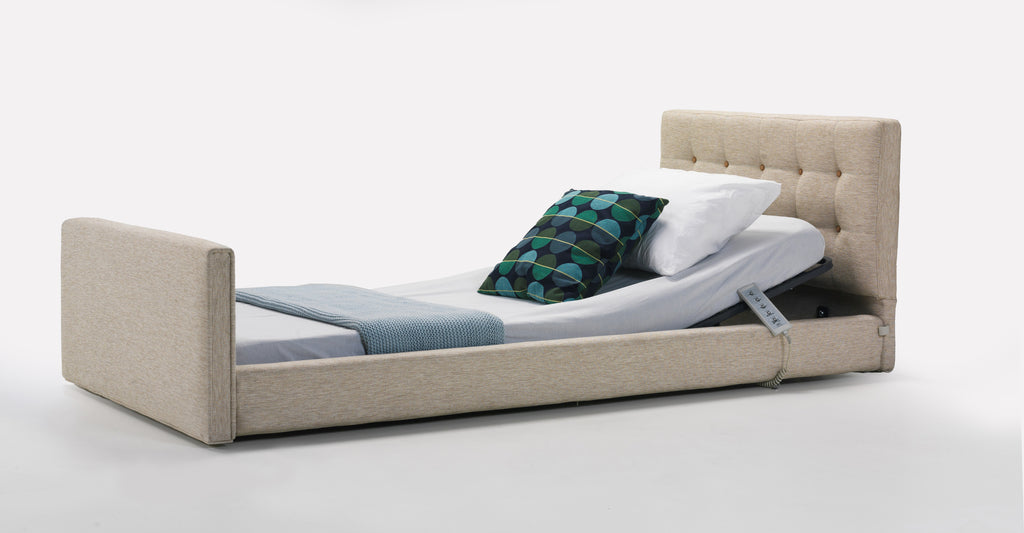

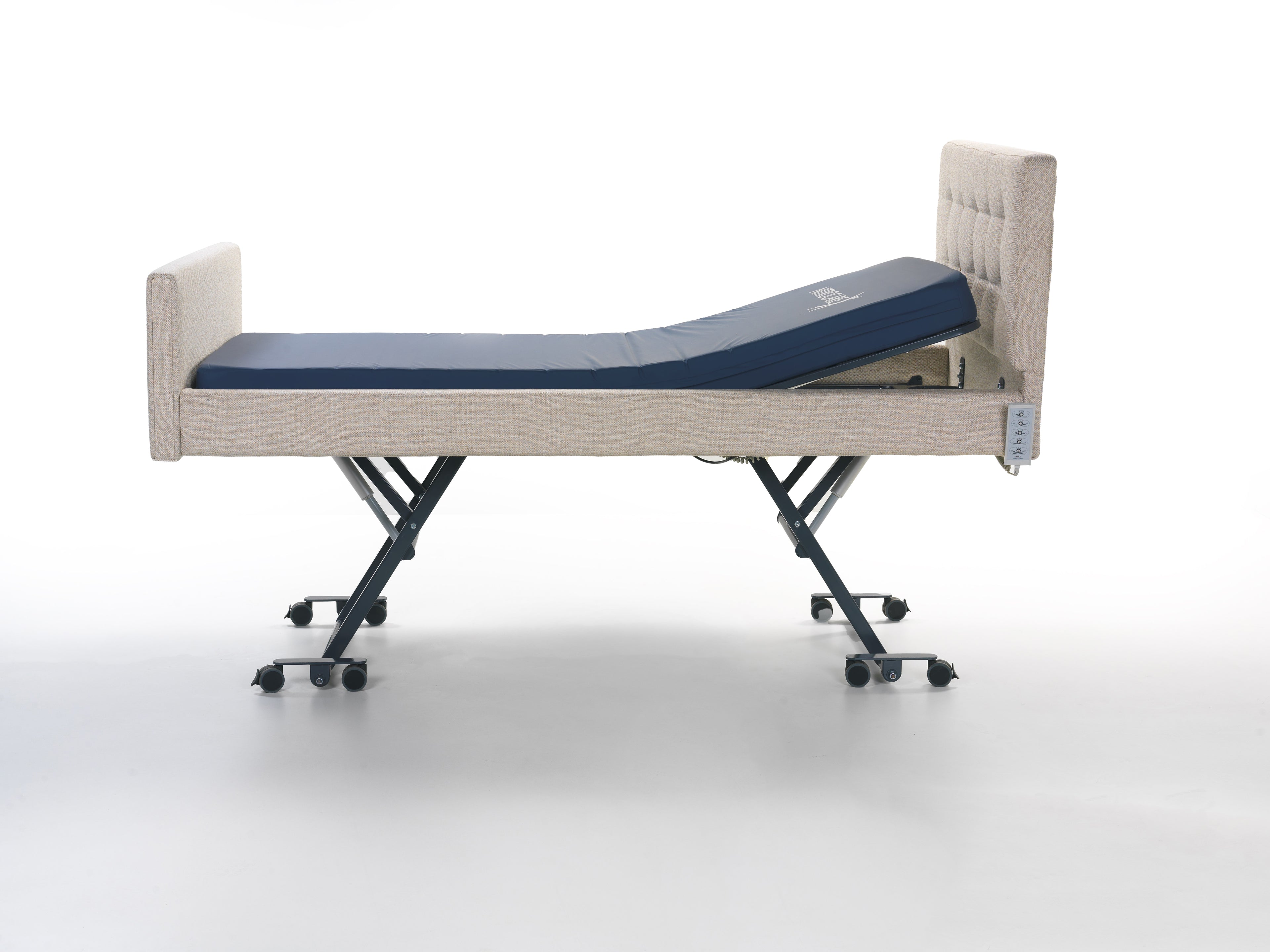

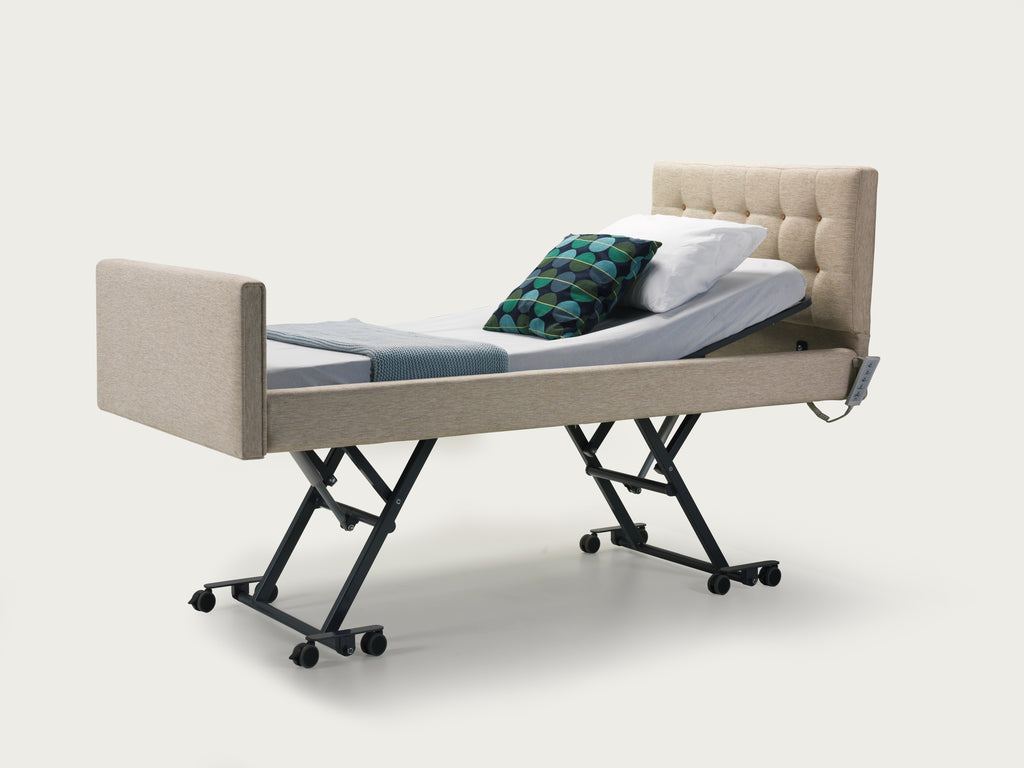

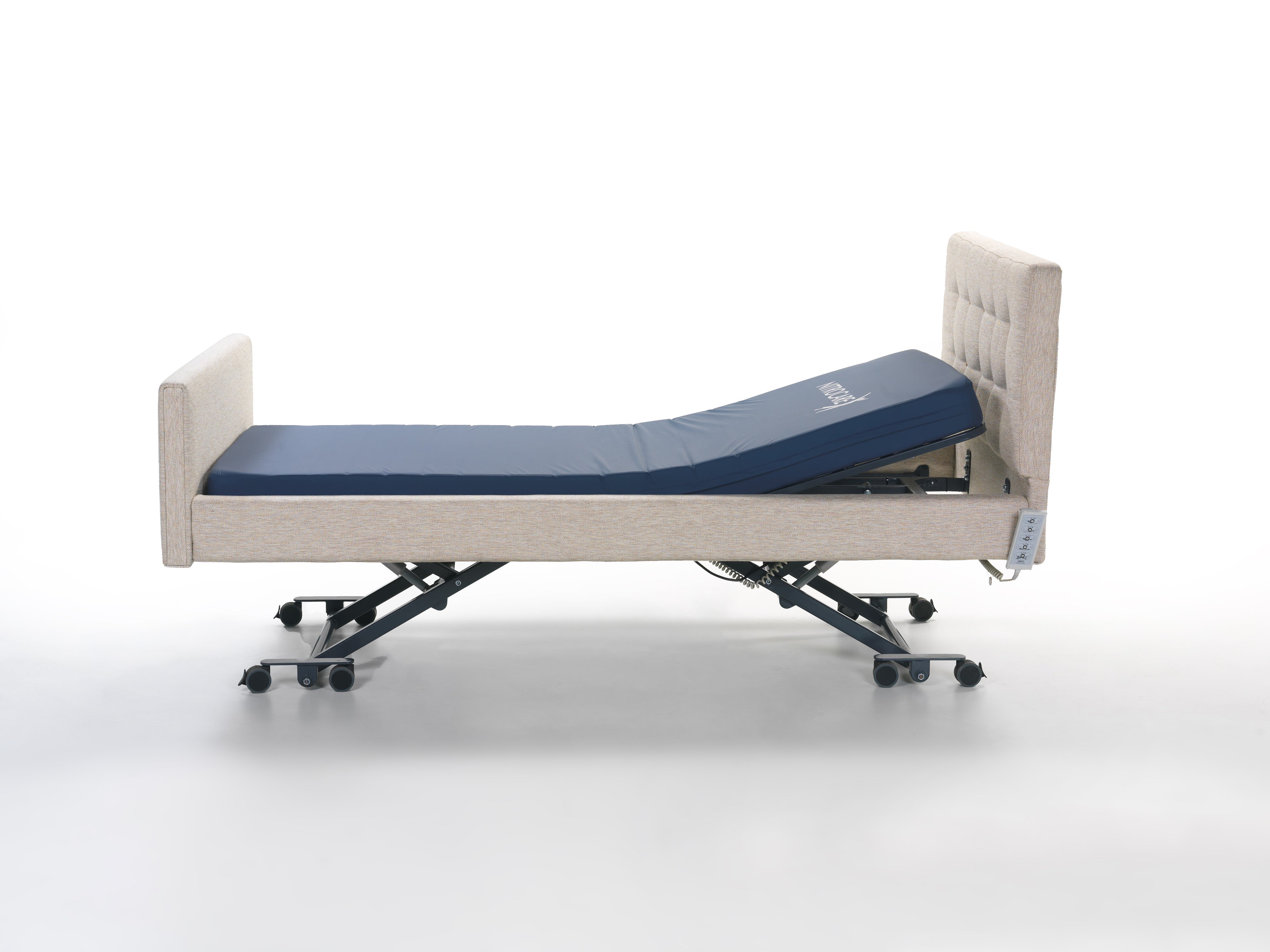

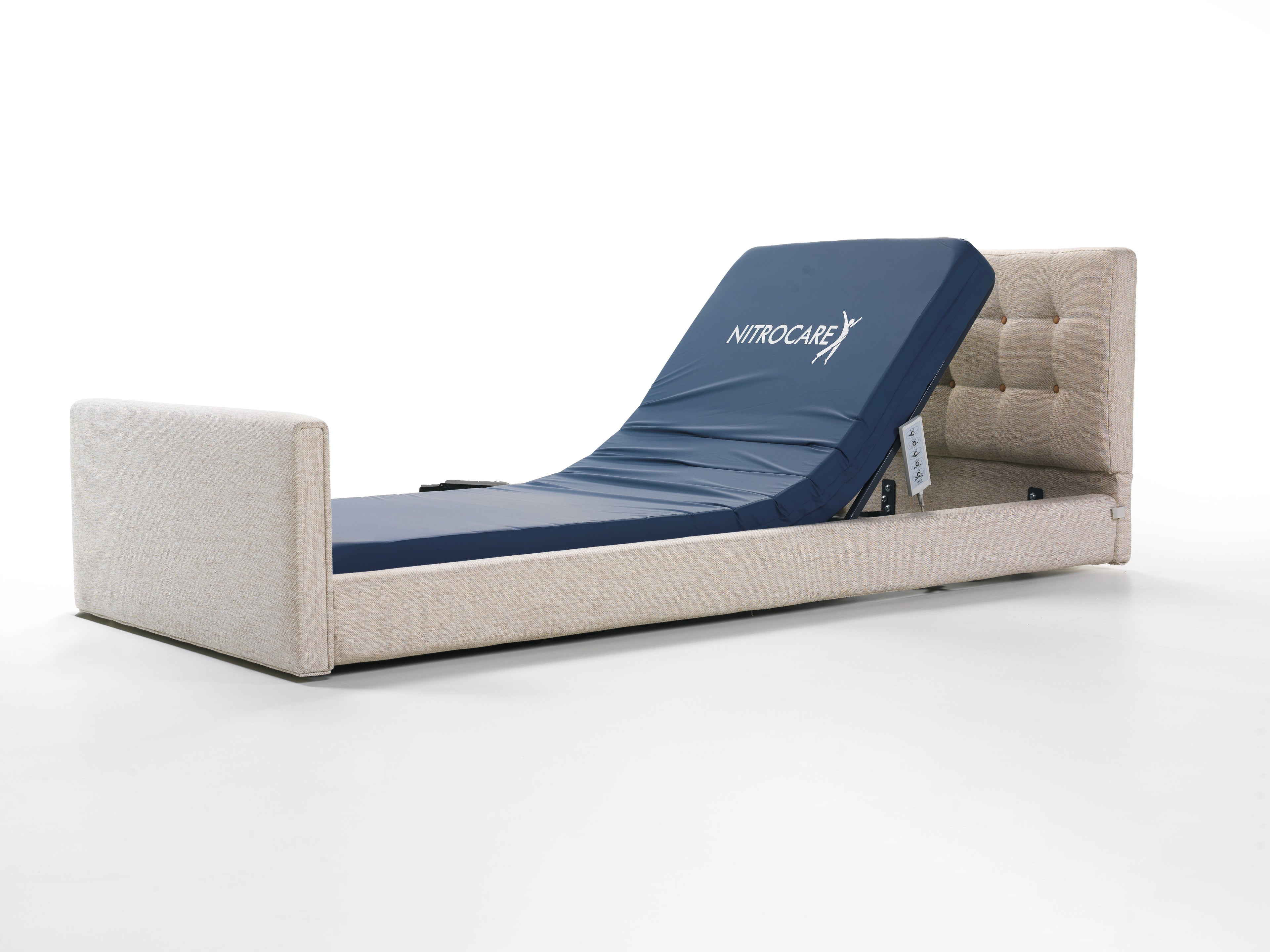

MIRANDA COMFORT 7410

TECHNICAL DRAWING

TECHNICAL FEATURES

- Product Code: NITRO HB 7410 COMFORT 90

- Brand: NITROCARE

- Height Adjustment: 10,000 N / IPX4 / DC linear actuator.

- Backrest Adjustment: 6,000 N / IPX4 / DC linear actuator.

- Calf Adjustment: 3,500 N / IPX4 / DC linear actuator.

- Foot Adjustment: Six-step mechanical ratchet.

- Motorized Movements: Height, Trendelenburg, Reverse Trendelenburg, Backrest, Calf, Cardiac and Knee Break.

- Mechanical Movements: Leg adjustment.

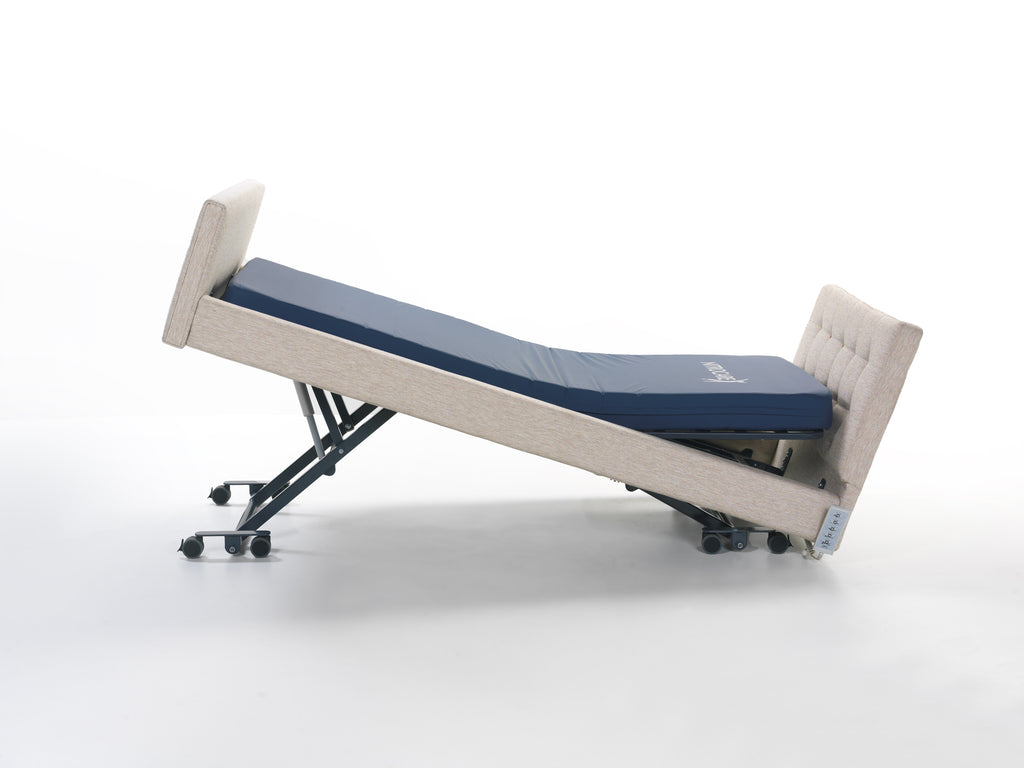

- Trendelenburg Angle: 17°

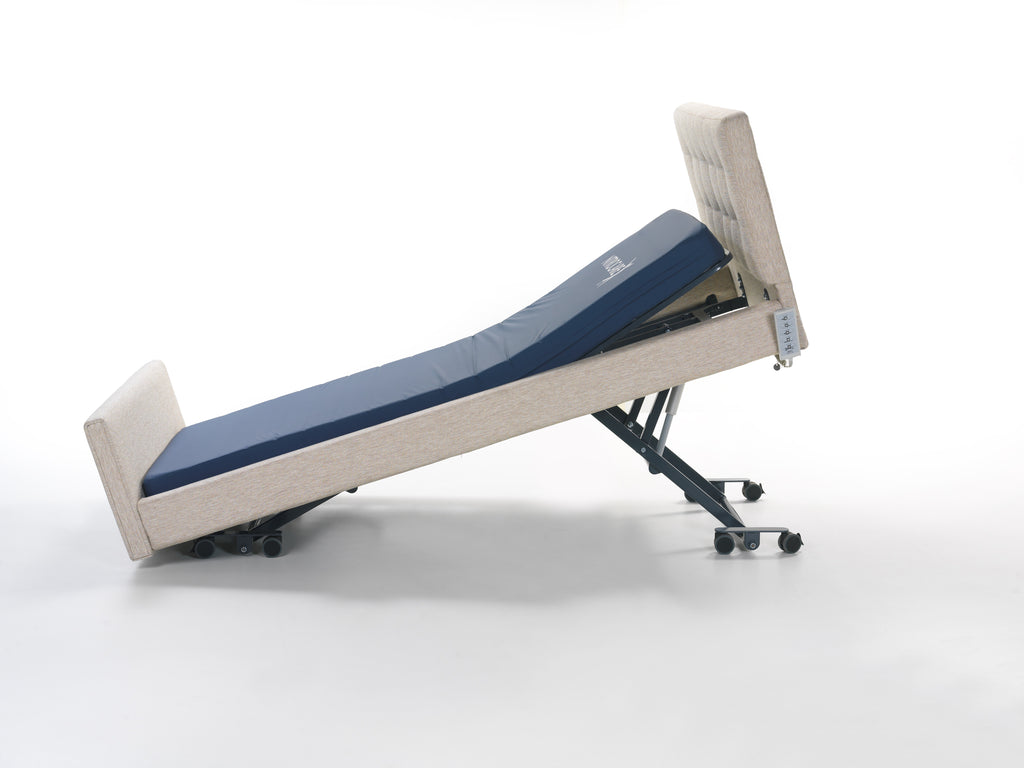

- Reverse Trendelenburg Angle: 17°

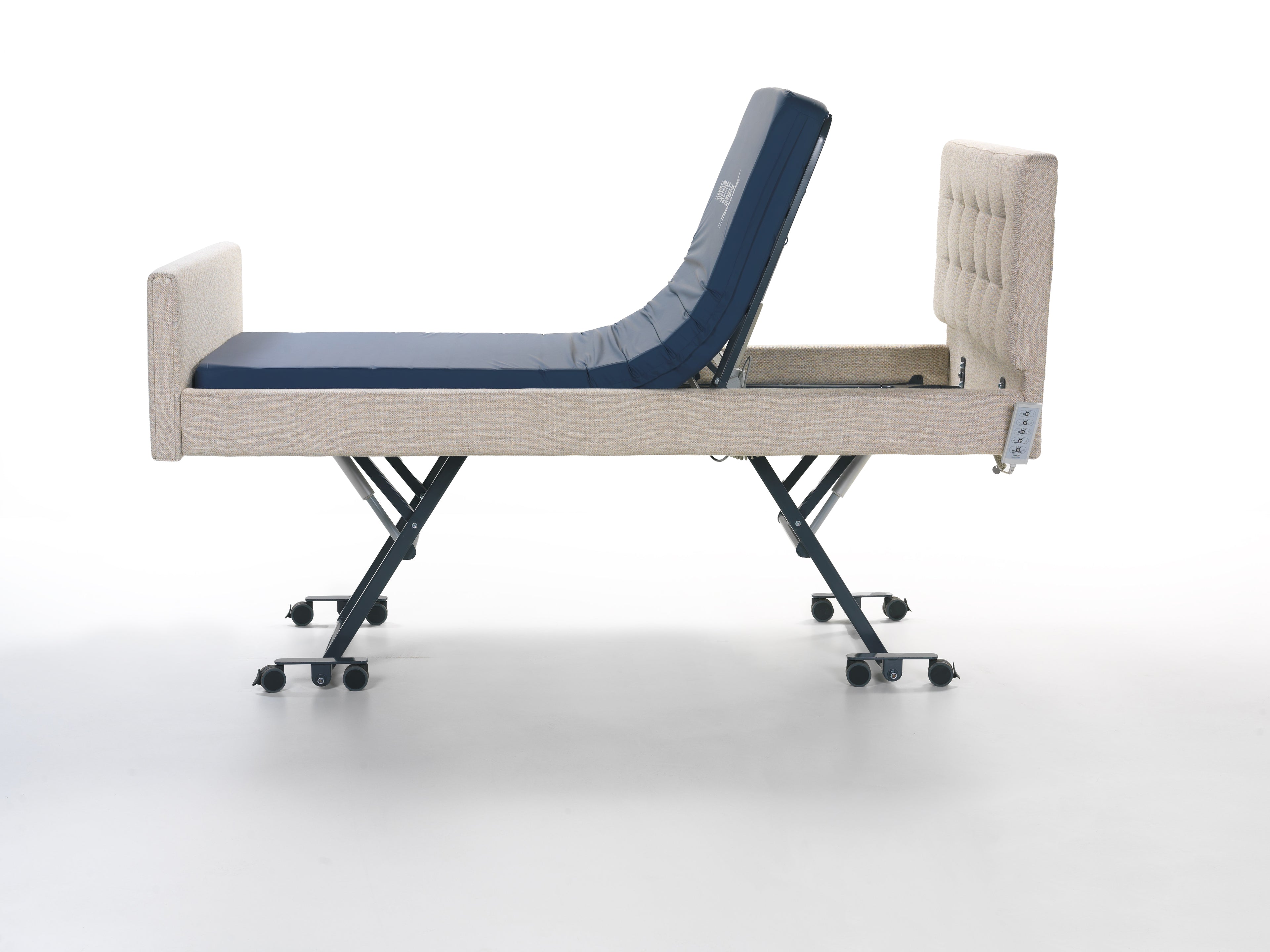

- Backrest Angle: 70°

- Calf Angle: 30°

- Foot Angle: 20°

- Minimum Product Dimensions: 109 × 219 cm

- Maximum Product Dimensions: 109 × 239 cm

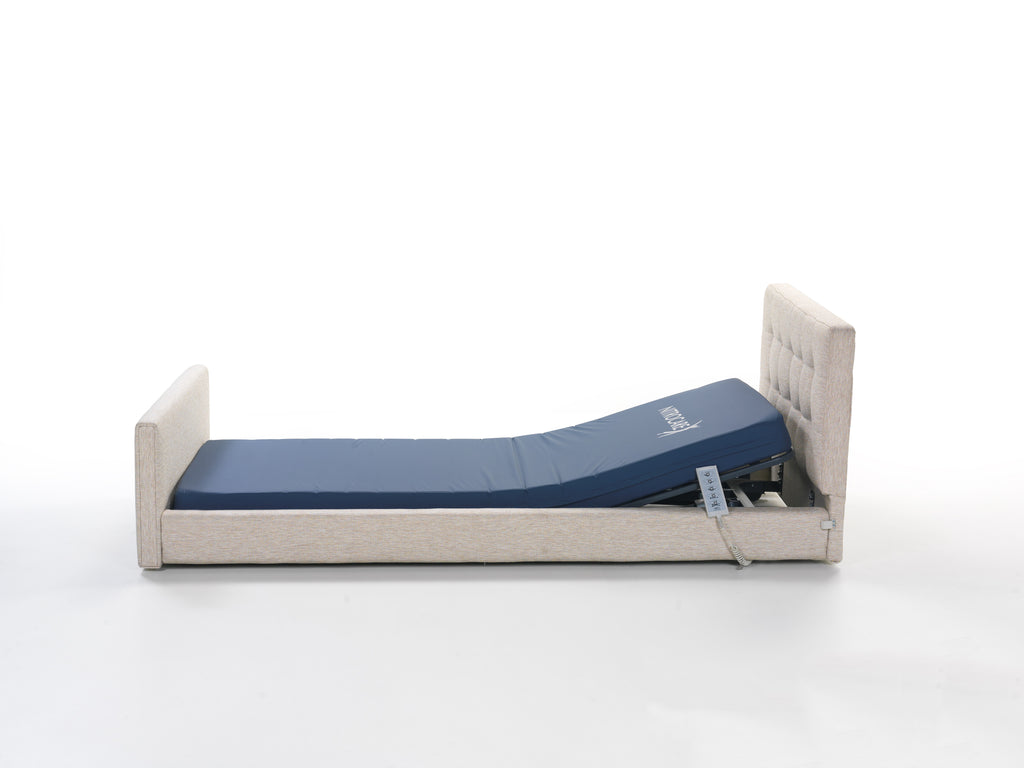

- Minimum Height: 11 cm

- Maximum Height: 73 cm

- Headboard Material: Fabric upholstered.

- Side Rails: Optional foldable side rails with metal construction.

- Number of Side Rails: 2

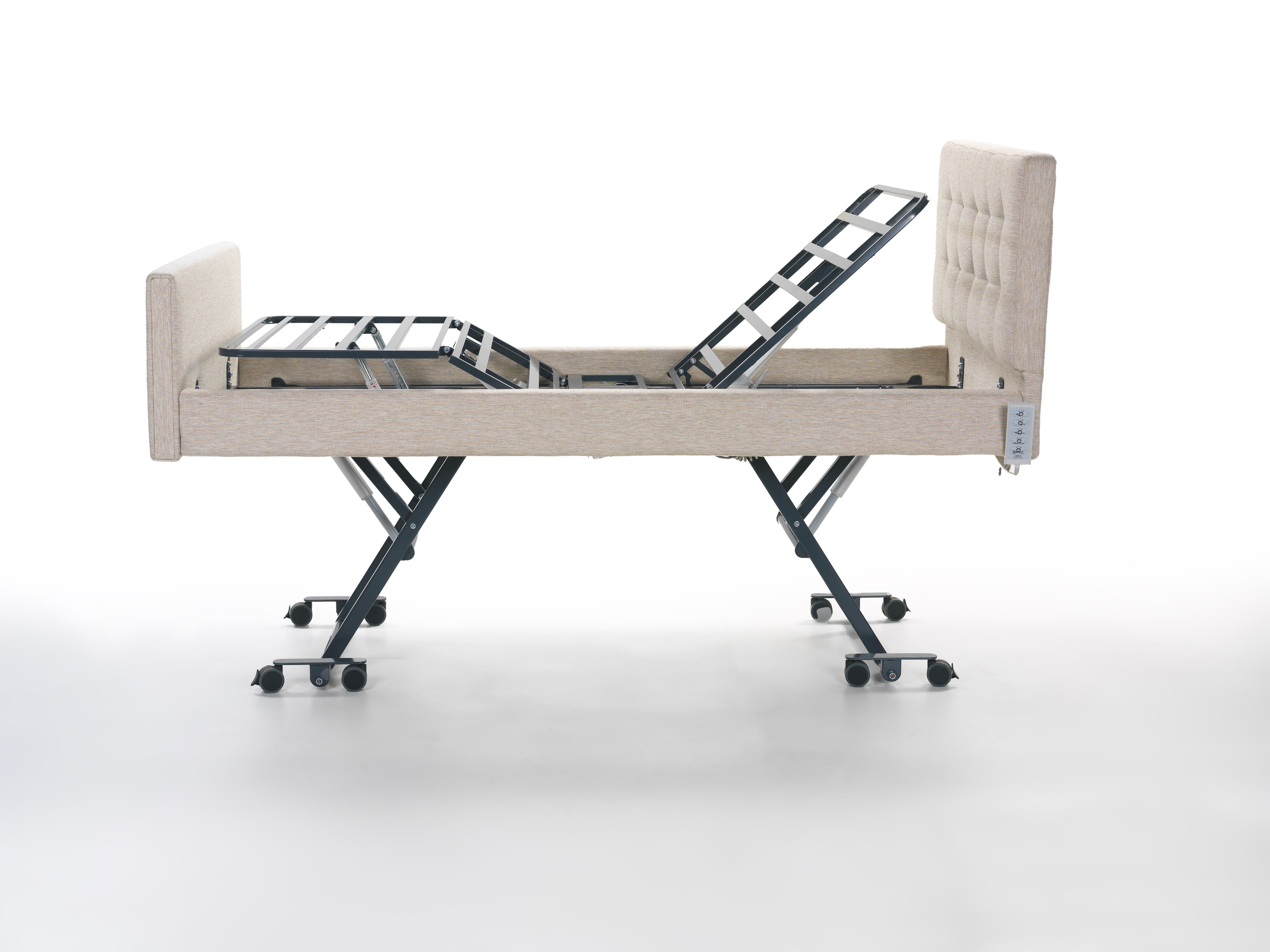

- Lying Surface Material: Metal.

- Lying Surface Sections: 4

- Lying Surface Dimensions: 90 × 197 cm

- Control Unit: Hand control.

- Wheel Diameter: Ø65 mm

- Wheel Locking Mechanism: Cross-brake system (linear brake).

- Metal Structure: Box profiles, tube profiles and sheet metal of various thicknesses.

- Metal Thickness: 1.5–3 mm box and tube profiles.

- Metal Coating: Electrostatic powder coating, minimum thickness 40 µm.

- Mattress Dimensions: 90 × 199 × 12 cm

- Safe Working Load: 220 kg

- Safe Loading Capacity: 440 kg

- Product Weight: 140 kg

- Warranty Period: 2 years

STANDART SPECIFICATION

Motorized height, backrest and legrest adjustment. Motorized Trendelenburg and Reverse Trendelenburg adjustment. Hand control unit, Fowler and vascular positions and gradual knee adjustment mechanism. Fixed fabric or leather upholstered headboard and footboard with wooden decorative construction. Ø65 mm movable castors with linear brakes and directional locking. Electrostatic powder-coated metal construction, four-section metal lying surface and wall protection bar. Mattress not included. Cardboard packaging.
